Is PCl3 ionic or covalent? PCl3 is a covalent compound because the high ionization energy of phosphorus does not favor the formation of a P3+ ion. Hence, a covalent bond is preferred over an ionic bond to achieve a stable electronic configuration. Similar values of Pauling electronegativity (2.19 & 3.16 for P and Cl, respectively) also favor the formation of a covalent bond. PCl3 is industrially prepared by reacting white phosphorus with chlorine. P4 + 6Cl2 —-> 4PCl3 It can further react with Cl2 to form PCl5. Thus, it is essential to remove the PCl3 product during the manufacturing process continuously. This is also an application of Le Chatelier’s principle, which states that product formation will be favored if the product concentration is decreased by external factors. It exists as a colorless liquid in its standard state. PCl3 has a melting point of -93.6 Celsius (-136.5 Fahrenheit) and a boiling point of 76.1 Celsius (169.0 Fahrenheit). The low melting point indicates the tendency of PCl3 to exist in liquid states, while the low boiling point indicates its volatile nature. In this article, we carry out a detailed chemical analysis to determine if PCl3 is Ionic or covalent.
Why is PCl3 Covalent?
Why is PCl3 Covalent?
Let us look at the electron configuration of P and Cl and determine the type of bonding. Electron Configuration of P: [Ne] 3s2 3p3 (Number of valence electrons = 5) Electron Configuration of Cl: [Ne] 3s2 3p5 (Number of valence electrons = 7) Let us assume that the P3+ cation is formed. For this to be possible, we need to remove 3 electrons from the 3p orbitals. The 3p3 configuration is highly stable due to high electron exchange stabilization energy. Hence, a lot of energy is required to remove these 3 electrons to form the P3+ cation. This results in high ionization energy, and thus, we can rule out the possibility of ionic bonding. However, we notice that the P atom needs 3 electrons to complete its octet and the Cl atoms need 1 electron each to complete their octet. This is possible when electron sharing takes place between the P and Cl atoms. Thus, each bond contains one electron from the P atom and another electron from the Cl atom.
How is a Covalent bond different from an Ionic bond?
How is a Covalent bond different from an Ionic bond?
A Covalent bond is formed when two atoms share electrons to achieve a stable electronic configuration. In the case of Ionic bonding, the two atoms in question gain and lose electrons to form a negatively charged anion and a positively charged cation, respectively. The cation and the anion gain stability for having a complete octet, and the attraction between the cation and the anion further increases the molecule’s stability. The difference between the two can be further explained by comparing the properties of their compounds.

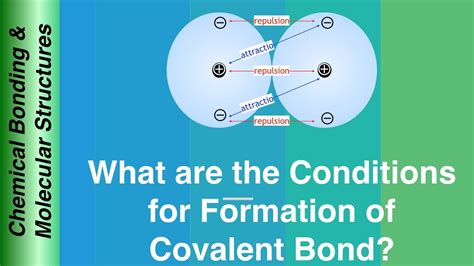

Conditions for formation of Covalent Bond
Conditions for formation of Covalent Bond
Bonding in PCl3 using Lewis structure and VSEPR Theory
Bonding in PCl3 using Lewis structure and VSEPR Theory

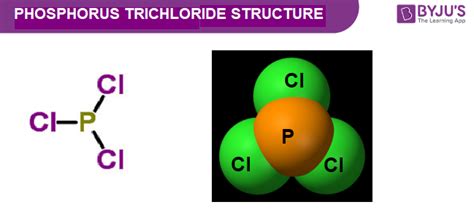

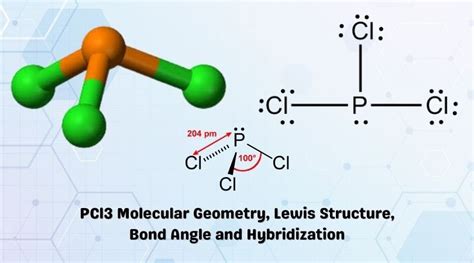

We employ the following procedure to determine the structure of PCl3: Step 1: Determine the central atom. In our case, we choose P as the central atom. Step 2: Count the total number of valence electrons in the molecule. n1 = 5 (from P) + 3 x 7 (from 3 Cl) = 26 Step 3: Count the number of electrons needed to fulfill the octet of all atoms. n2 = 8 x (Number of atoms) = 8 x 4 = 32 Step 4: Number of bond pairs = (n2 – n1)/2 = 6/2 = 3 Step 5: Count the number of non-bonding electrons. n3 = n1 – (n2 – n1) = 26 – (32 – 26) = 20 Step 6: Number of lone pairs = n3/2 = 20/2 = 10 We are now ready to draw the Lewis structure of PCl3. First, we place the P atom at the center and remove three single bonds (3 bond pairs) connecting the Cl atoms.
To complete P’s octet, one of the lone pairs is placed on P, and the other 9 lone pairs are evenly distributed on the Cl atoms to complete their octet. You can also read out the article I wrote on the lewis structure of PCl3. After knowing the electron distribution in the molecule, VSEPR theory can be used to determine the molecule’s geometry. The repulsion between the lone pair on the P atom and the bond pairs of the Cl atoms will force the molecule to adopt a trigonal bipyramidal geometry.
Bonding in PCl3 using Hybridization Theory
Bonding in PCl3 using Hybridization Theory

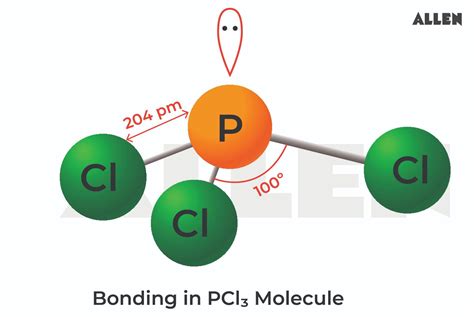

Consider the electronic configuration of P: [Ne] 3s2 3p3 The 3s and 3p orbitals are pretty close in energy and can hybridize into four equivalent sp3 orbitals. One sp3 orbital will contain the lone pair of the P atom, and the other three sp3 orbitals will have one electron each. The atomic orbitals of each Cl atom can now share their electrons with sp3 orbital electrons to fulfill their octet. The expected geometry of a sp3 molecule is tetrahedral. Still, due to the absence of a 4th bonding atom and the presence of a lone pair, the trigonal bipyramidal geometry is adopted with a Cl-P-Cl bond angle of 100 degrees (deviates from the ideal 109 degrees because of lone pair repulsion).
Properties of PCl3
Properties of PCl3
Chemical Properties
Physical Properties
Uses of PCl3
Uses of PCl3
Conclusion
PCl3 is a covalent compound as electrons are shared between the P atom and the Cl atoms. P atom is three electrons short of achieving an octet, while the Cl atoms are one electron away. The sharing of electrons results in an inert electron configuration for all the atoms. Three bond pairs of electrons are responsible for the formation of 3 single bonds between the P and Cl atoms. The rest of the valence electrons manifest themselves as non-bonding electrons or lone pairs on the P and Cl atoms.
